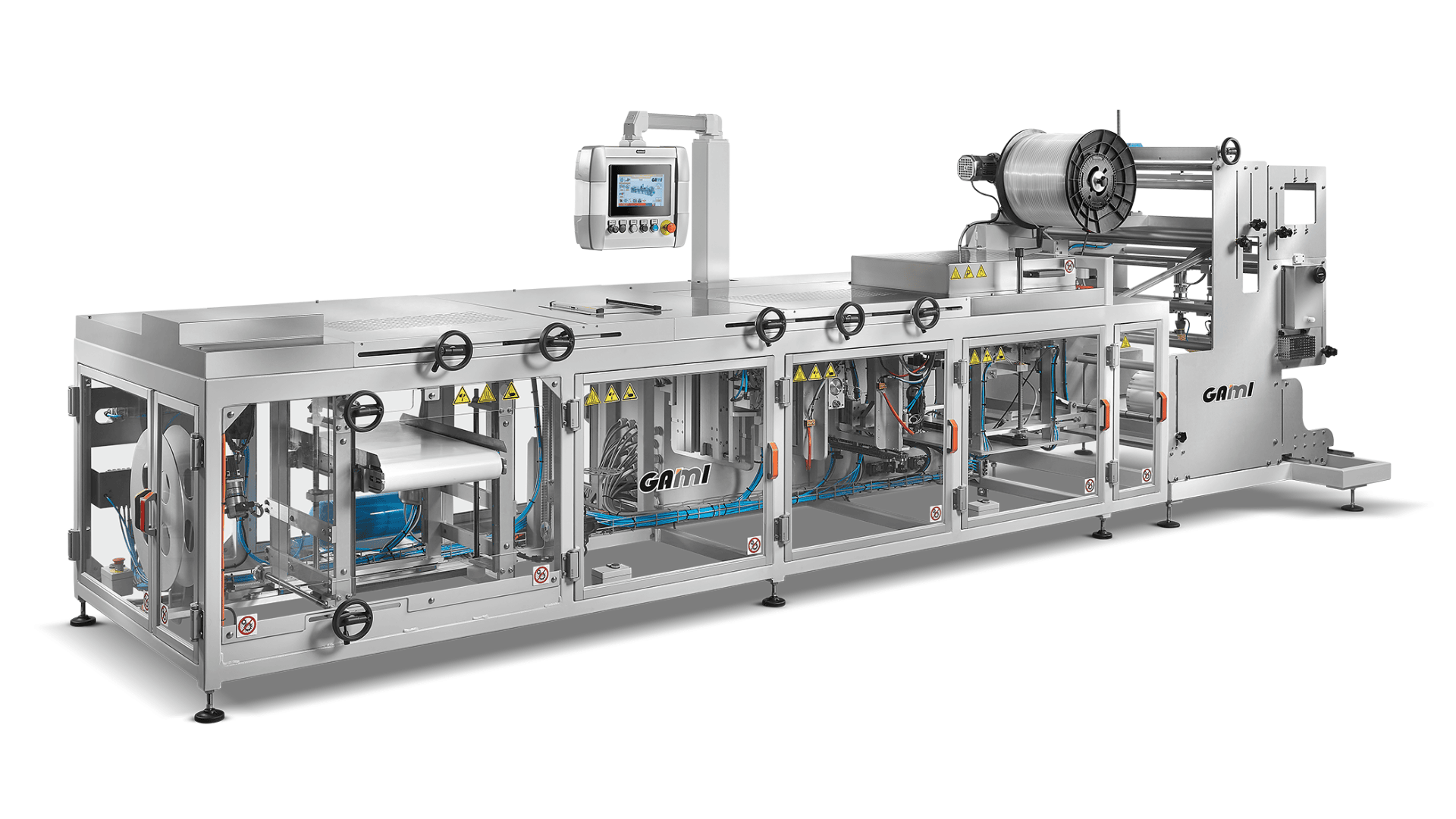

MY WAY - Stand up pouch

We are happy and proud to announce our new packaging machine for stand up pouches called "MyWay".

The machine dimensions and price allow a company to introduce stand up pouches for both plastic film and paper without having to make a big investment. Pouches are made starting from flat film, so material cost is cheaper compared to preformed bags. With this machine you can use both plastic film and paper with only a few easy and fast adjustments. As options you can add the zipper and the eurohole / handle.

On top of the loading station we can automatize the loading process with a counting or weighing system.

General technical characteristics:

• Main Structure made of Painted Steel;
• Electrical cabinet is integrated against the frame;
• End of film automatic detection system with automatic machine pauses when the film-reel is over;
• Motorized film-pulling unit by 2 Servo Motor;
• Motorized Film Unwinding system by AC Motor;
• N.1 Loading station;
• Machine Flow Chart:
  • Film Folding Device
  • Die Cut for bottom seal
  • Gusseting Device
  • Bottom Reinforsement
  • Double Vertical Sealing
  • Vertical Cutting
  • Loading Station
  • Horizontal Sealing
  • Exit Belt
  • Film Scrap Collector
• Bag Sizes:

  • Min: 180 mm wide x 180 mm long
  • Max: 340 mm wide x 340 mm long
• Max film Reel 900 mm
• Mechanical Speed: up to 30 a minute
• PLC Delta control system;
