All-in-one solution reduces space requirements and operating costs
Great advantages due to an all-in-one dosing system and centrifugal screener in a hygienic design. Ergonomic fast and easy cleaning with retractable screen and dosing screw.
Bookmark
All-in-One: Metering and sieving unit are combined. This way you save space and operating costs.

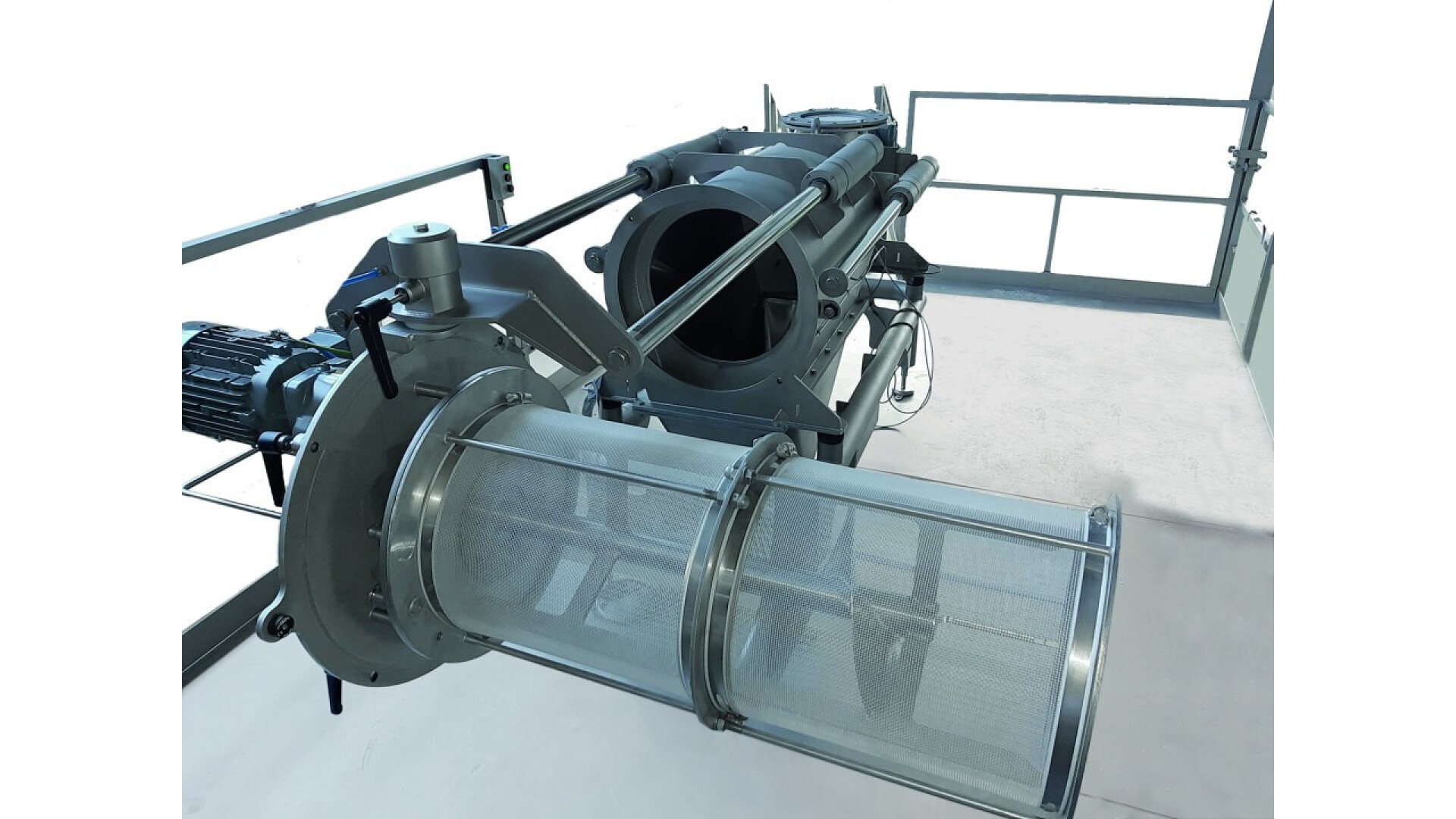

Easy inspection, fast cleaning: The metering and sieving unit can be easily pulled out for inspection thanks to the guided pull-out device: This allows a precise inspection of the entire interior and product chamber. If the screen basket needs to be changed, this can be done quickly and conveniently. The same applies to cleaning the machine.
Hygienic Design: The DM30 Easy Clean follows the principles of Hygienic Design. No compromise on quality and consequently reduced costs on downtime for cleaning and energy. The DM30 Easy Clean is made of stainless steel, AISI 304.
Shaft sealing by means of monitored air flushing: Monitoring ensures safe and low-maintenance operation.
Design:
→ Stainless steel construction complete with sturdy end plates
→ Rotor shaft with paddle assembly and dosing screw
→ Shaft sealing rings with monitored air purging
→ Removable front plate including clamping leaver andsafety switch
→ Including tilting mechanism

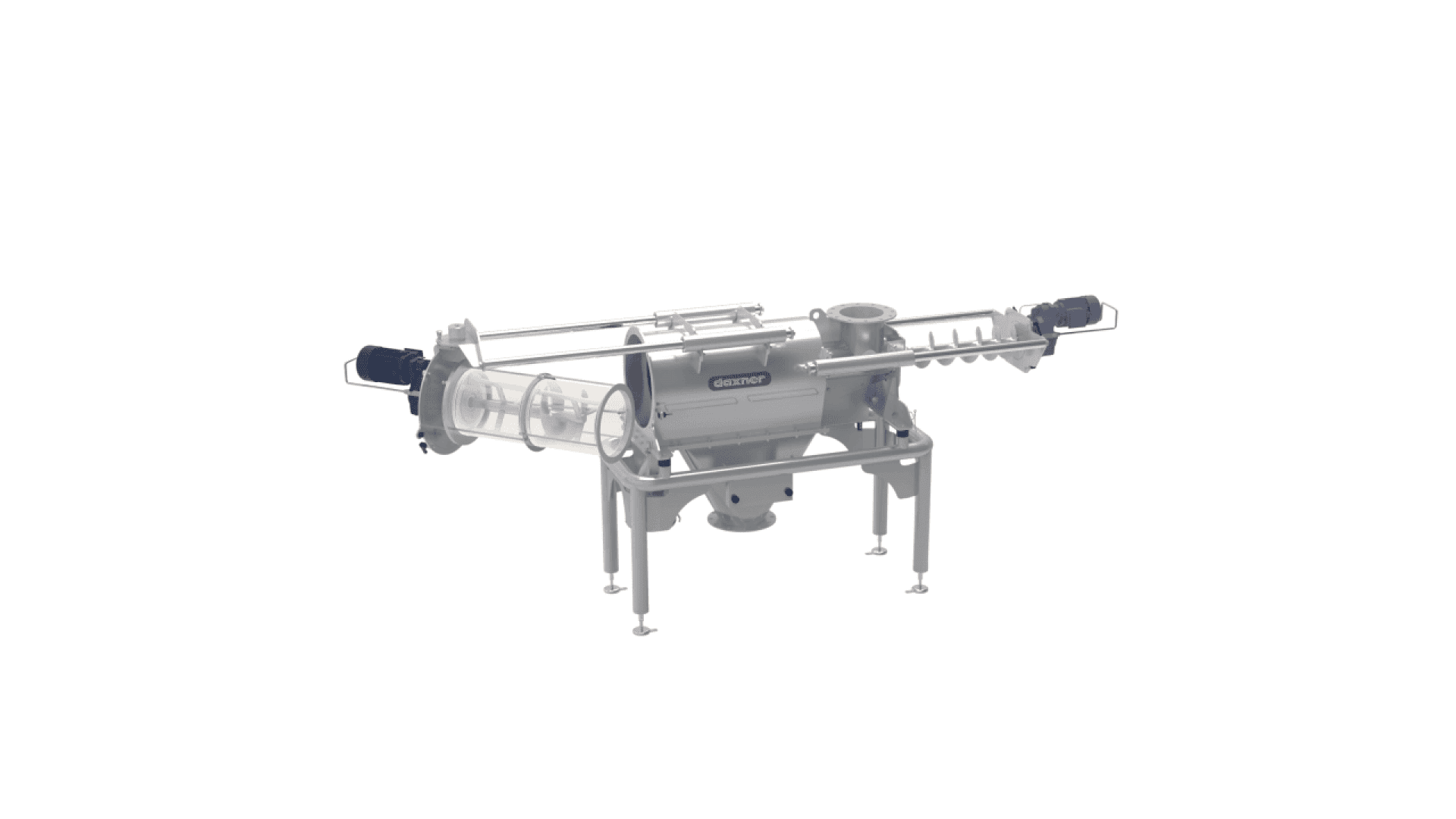

→ Pull-out device for rotor shaft, screen basket and dosing screw
→ Tilting mechanism for screening unit
→ Certified according to ATEX Directive 2014/34/EU. Suitable for installation in zone 22.
Output:
→ Depending on product properties and mesh width
→ 5,000 kg/h to 20,000 kg/h
→ Mesh width 600 - 3,300 my
→ Screen basket material: Nitex
Scope of delivery:
→ 1 Dosing & Screening machine DM30 Easy Clean
→ 1 Air purge fitting with flow monitoring
→ 1 Collection tray to collect product residue
→ 1 Support frame mounted on anti-vibration mounts
→ 1 Overflow NW150
→ 1 Bagging spout with sack strap DM273 DN150
→ 1 Connecting set for the intake pipe
→ 1 Discharge hopper DN250
Option:
→ Spare Nitex sieve screen
→ Sieve box made of perforated metal plate
→ Polished surface finish on the inside of dischargehopper
→ Pipe magnet at inlet
→ Gear motors made of stainless steel
→ Screen basket made of stainless steel
